exercise 10.2 class 10 ncert solution answer key

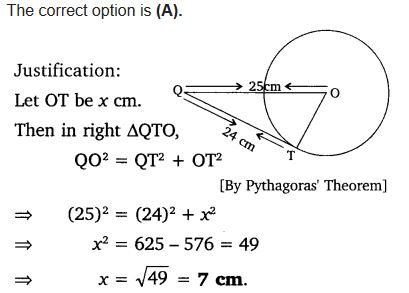

1.From a point Q, the length of the tangent to a circle is 24 cm and the distance of Q from the centre is 25 cm. The radius of the circle is
(a) 7 cm
(b) 12 cm
(c) 15 cm
(d) 24.5 cm
Solution:
Ex 10.2 Class 10 Maths Solutions NCERT PDF Q1

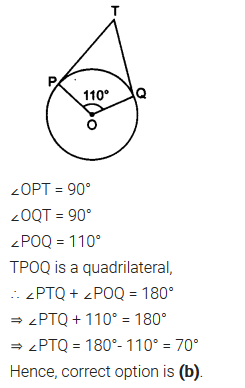

2.In figure, if TP and TQ are the two tangents to a circle with centre O so that ∠POQ = 110°, then ∠PTQ is equal to
(a) 60°
(b) 70°
(c) 80°
(d) 90°
NCERT Solutions for Class 10 Maths Chapter 10 Circles Ex 10.2 Q1
Solution:
Ex 10.2 Class 10 Maths Solutions NCERT PDF Q2

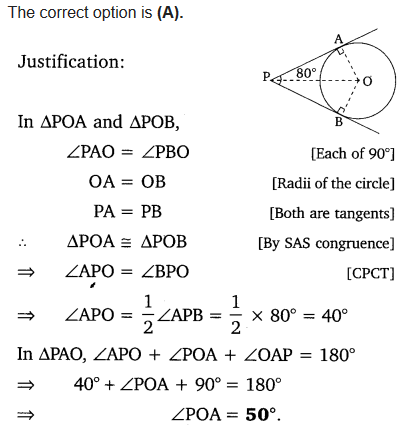

3.If tangents PA and PB from a point P to a circle with centre O are inclined to each other at angle of 80°, then ∠POA is equal to
(a) 50°
(b) 60°
(c) 70°
(d) 80°
Solution:
Ex 10.2 Class 10 Maths Solutions NCERT PDF Q3

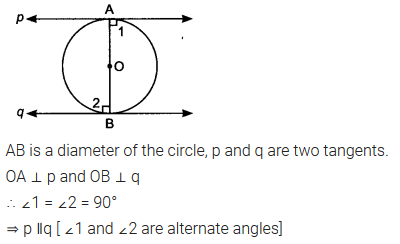

4.Prove that the tangents drawn at the ends of a diameter of a circle are parallel.
Solution:
Exercise 10.2 Class 10 Maths Solutions NCERT PDF Q4

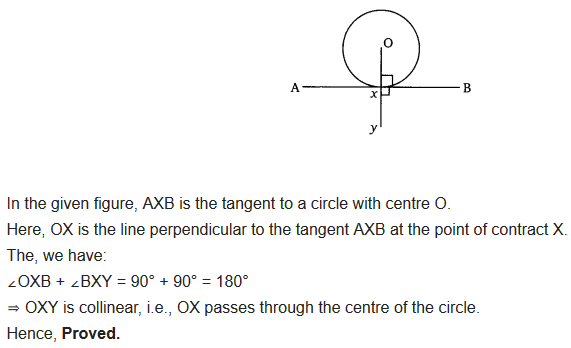

5.Prove that the perpendicular at the point of contact to the tangent to a circle passes through the centre.
Solution:
Exercise 10.2 Class 10 Maths Solutions NCERT PDF Q5

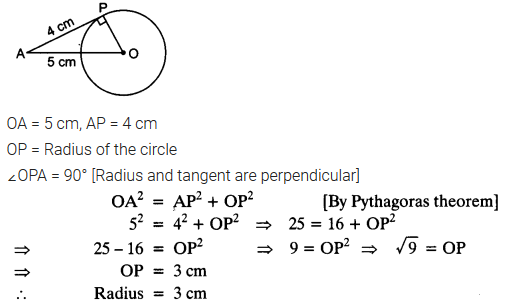

6.The length of a tangent from a point A at distance 5 cm from the centre of the circle is 4 cm. Find the radius of the circle.
Solution:
Exercise 10.2 Class 10 Maths Solutions NCERT PDF Q6

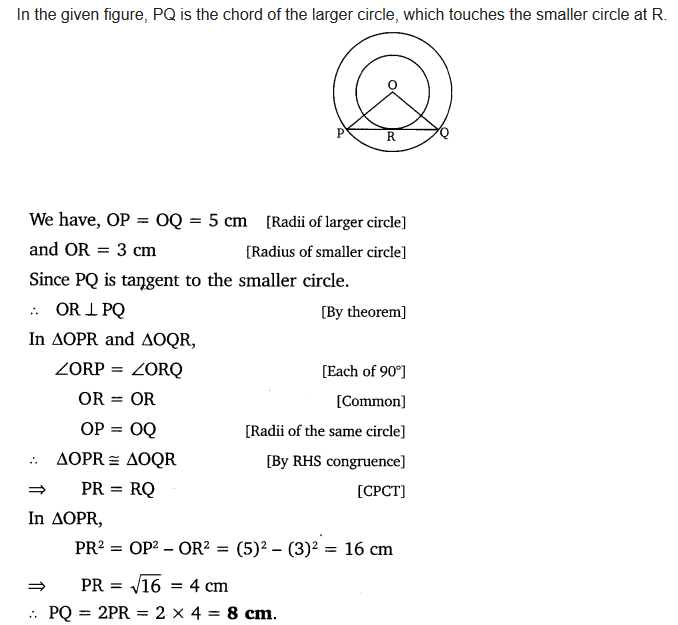

7.Two concentric circles are of radii 5 cm and 3 cm. Find the length of the chord of the larger circle which touches the smaller circle.
Solution:
Circles Class 10 NCERT Solutions Ex 10.2 PDF Q7

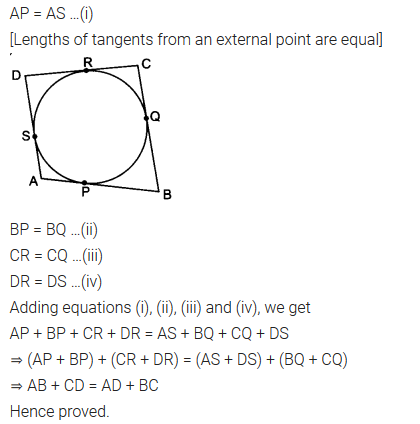

8.A quadrilateral ABCD is drawn to circumscribe a circle (see figure). Prove that AB + CD = AD + BC.
NCERT Solutions for Class 10 Maths Chapter 10 Circles Ex 10.2 Q8
Solution:
Circles Class 10 NCERT Solutions Ex 10.2 PDF Q8

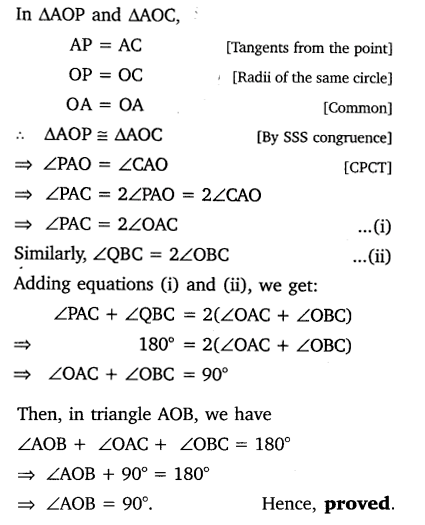

9.In figure, XY and X’Y’ are two parallel tangents to a circle , x with centre O and another tangent AB with point of contact C intersecting XY at A and X’Y’ at B. Prove that ∠AOB = 90°.
NCERT Solutions for Class 10 Maths Chapter 10 Circles Ex 10.2 Q9
Solution:
Chapter 10 Maths Class 10 NCERT Solutions Ex 10.2 PDF Q9

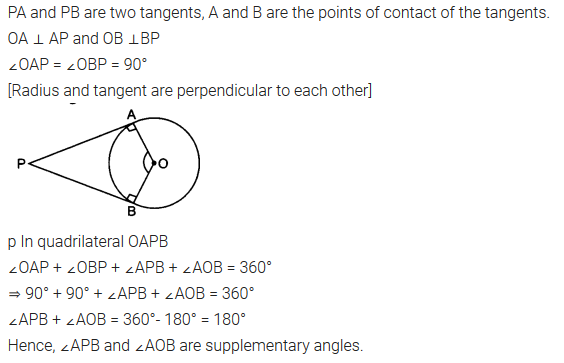

10.Prove that the angle between the two tangents drawn from an external point to a circle is supplementary to the angle subtended by the line segment joining the points of contact at the centre.
Solution:
Chapter 10 Maths Class 10 NCERT Solutions Ex 10.2 PDF Q10

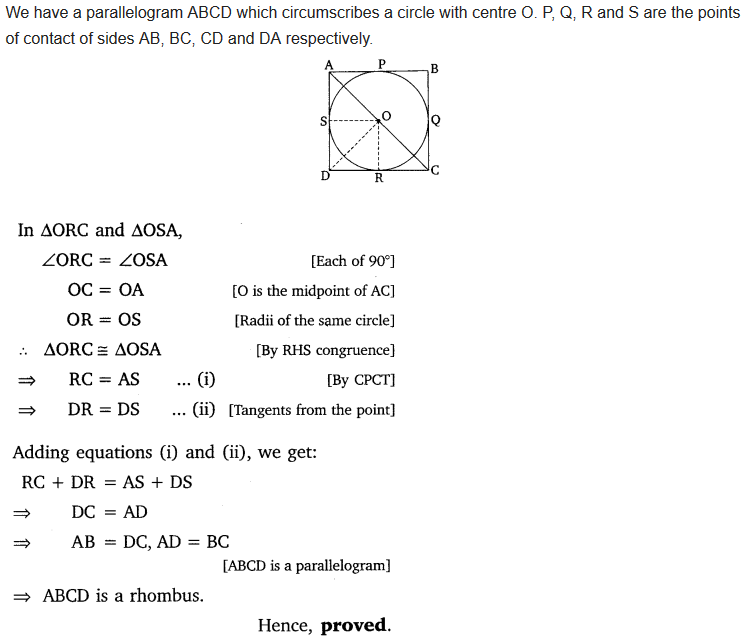

11.Prove that the parallelogram circumscribing a circle is a rhombus.
Solution:
Ch 10 Maths Class 10 NCERT Solutions Ex 10.2 PDF Q11

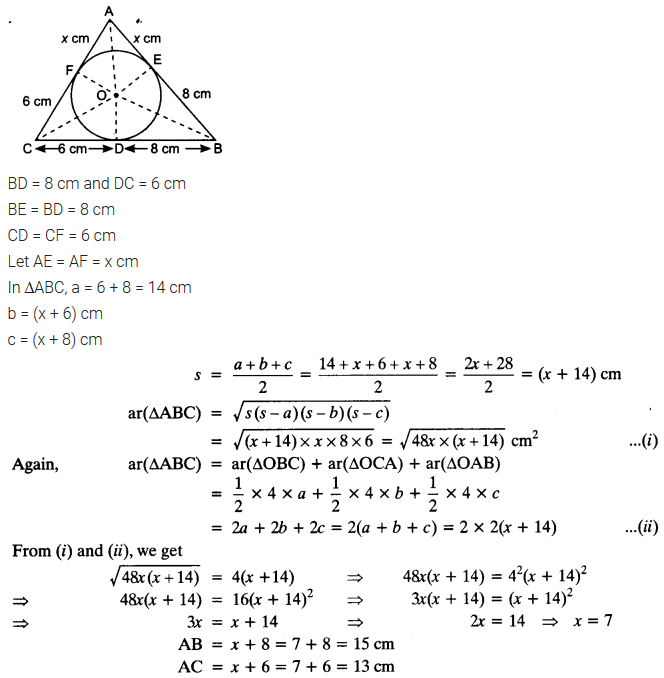

12.A triangle ABC is drawn to circumscribe a circle of radius 4 cm such that the segments BD and DC into which BC is divided by the point of contact D are of lengths 8 cm and 6 cm respectively (see figure). Find the sides AB and AC.
NCERT Solutions for Class 10 Maths Chapter 10 Circles Ex 10.2 Q12
Solution:
Ch 10 Maths Class 10 NCERT Solutions Ex 10.2 PDF Q12

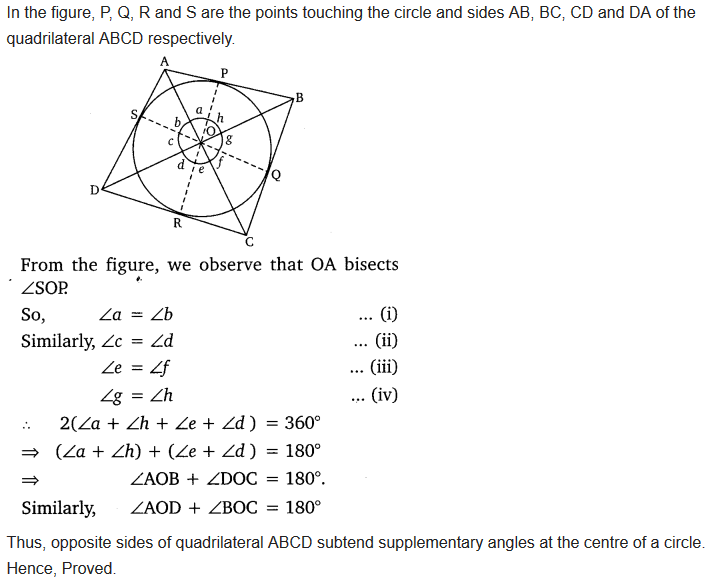

13.Prove that opposite sides of a quadrilateral circumscribing a circle subtend supplementary angles at the centre of the circle.
Solution:
Ex 10.2 Class 10 Maths Solutions NCERT PDF Q13
